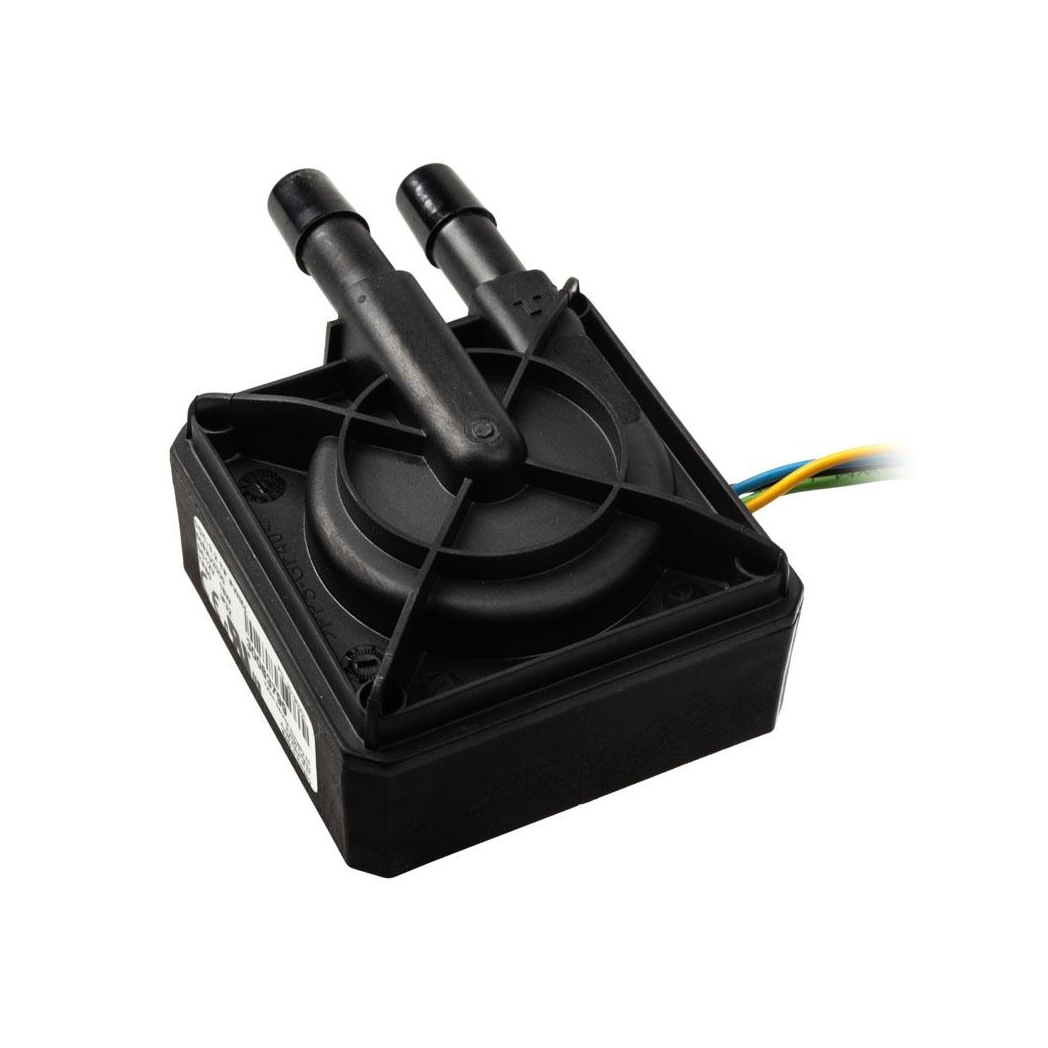

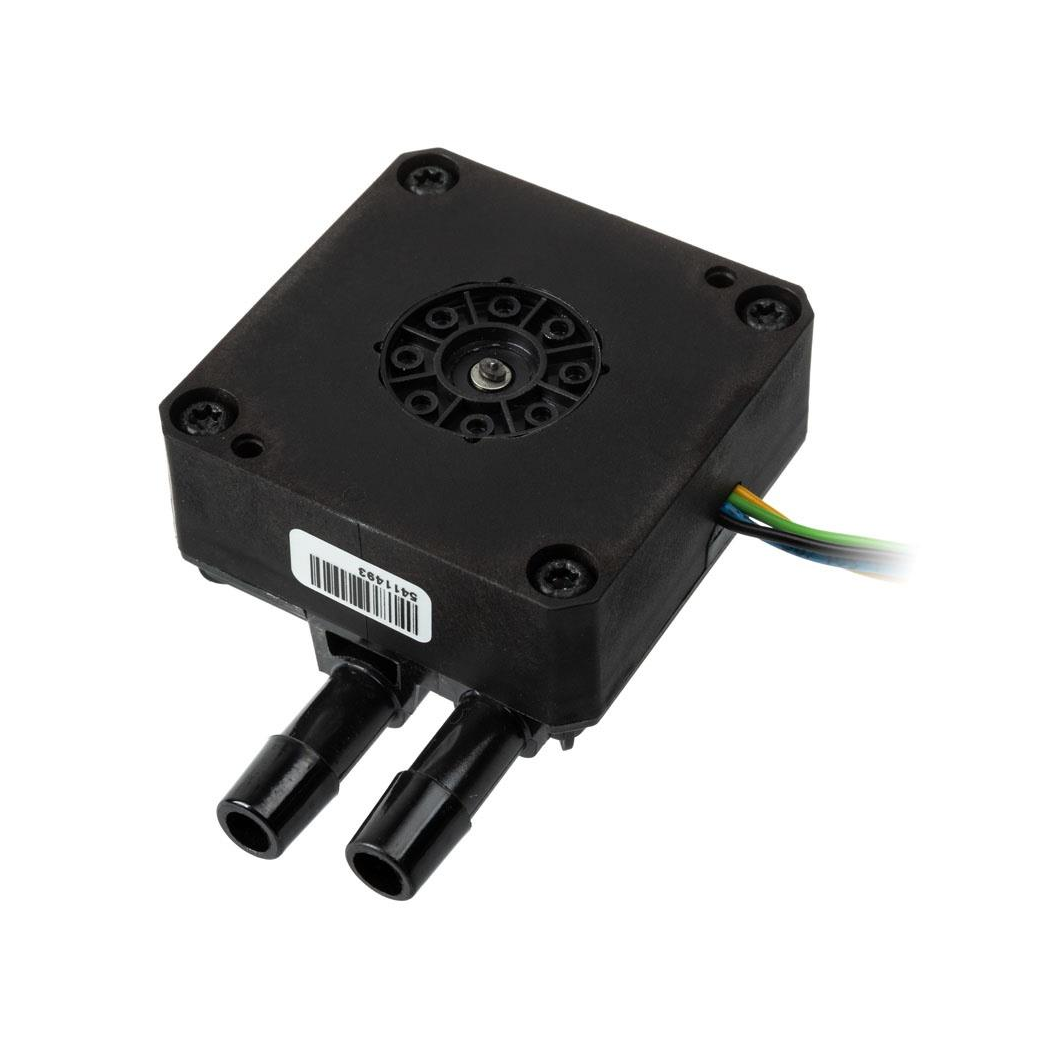

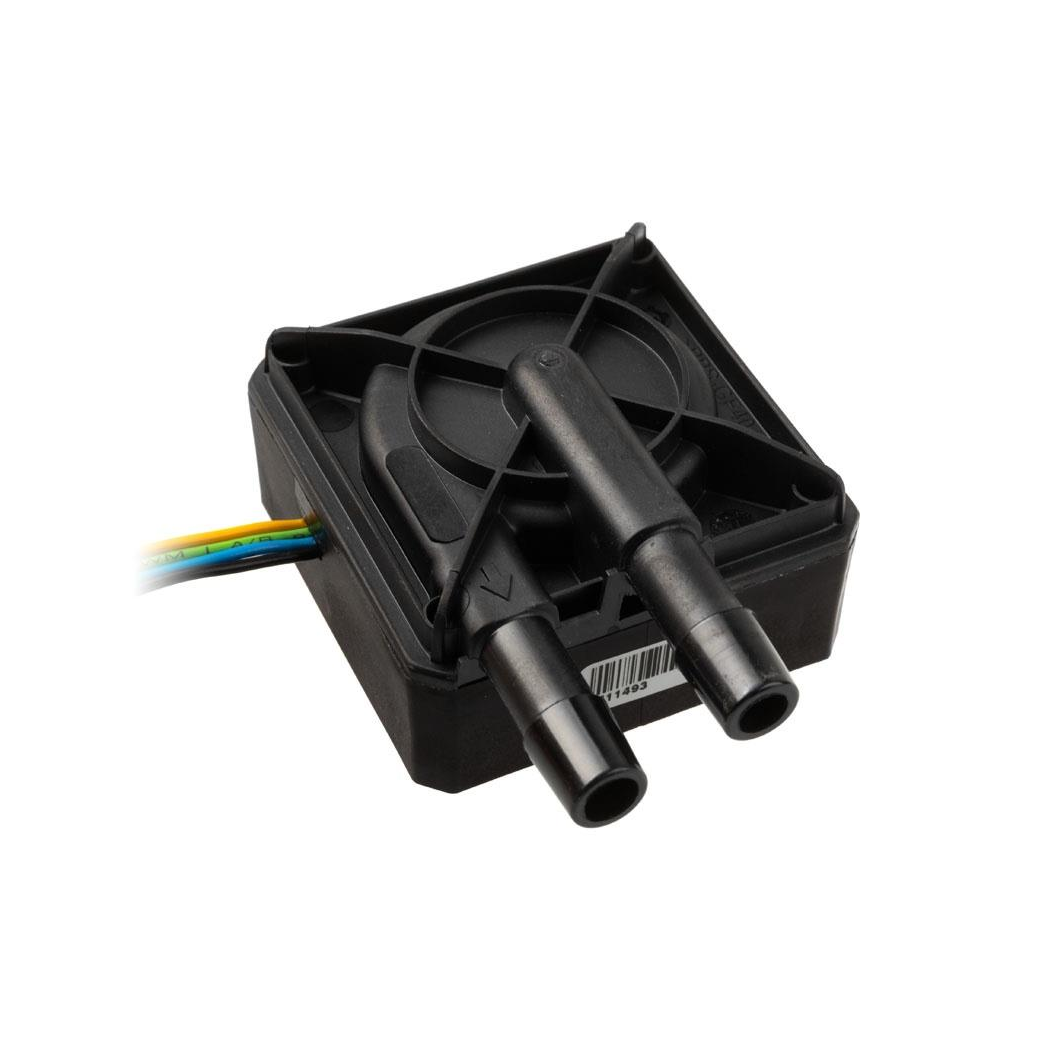

XSPC / Laing DDC-1T Plus 3.2 (18W)

The DDC-1T Plus delivers high performance and superb reliability, in a compact design.

This version of the DDC includes the top cover with fixed 3/8″ barbs, and is suitable for use with 3/8″ ID tubing. The top cover can easily be removed, so the pump is fully compatible with any DDC bay and tank reservoirs.

Features:
- 4 Pin Molex and 3 Pin Tacho Output
- Maximum flow rate: 900l / h
- Pressure head at 12V: 5.7 m
- Maximum Head Delivery: 4.7m
- Voltage: 12V
- Power consumption: 18W
- Maximum Temperature: 60C
- Dimensions: 62 x 62 x 38 mm
- Coolant: Water / glycol / glycol mixtures
- Fittings: 2 x 3 / 8" barbed fittings (For hoses with an outer diameter of 10mm and 8mm inner diameter)

Connections:
1x 12v 4Pin Molex
1x 3 Pin Tacho output wire (Pumps speedometer)
